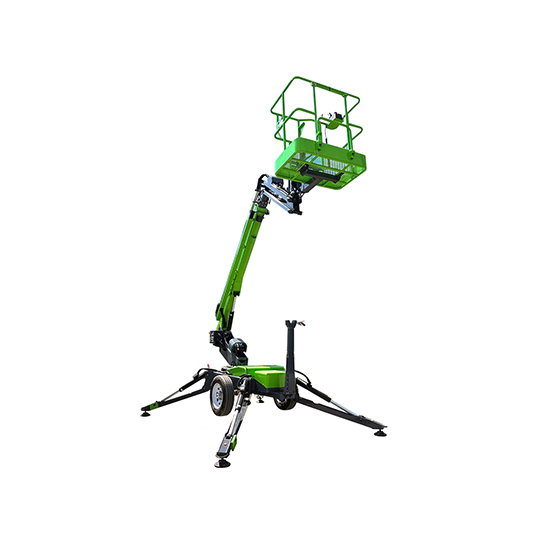

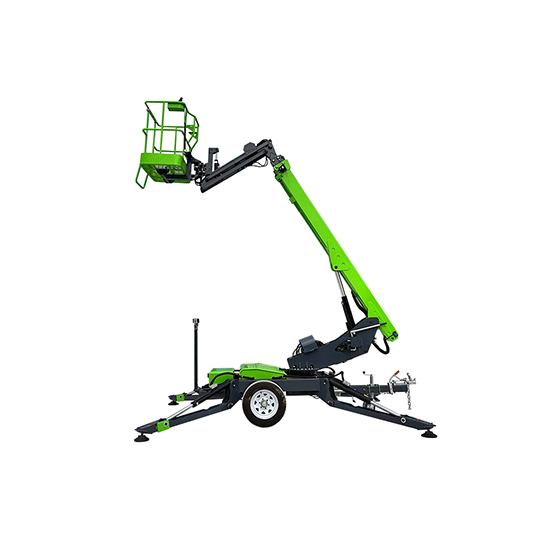

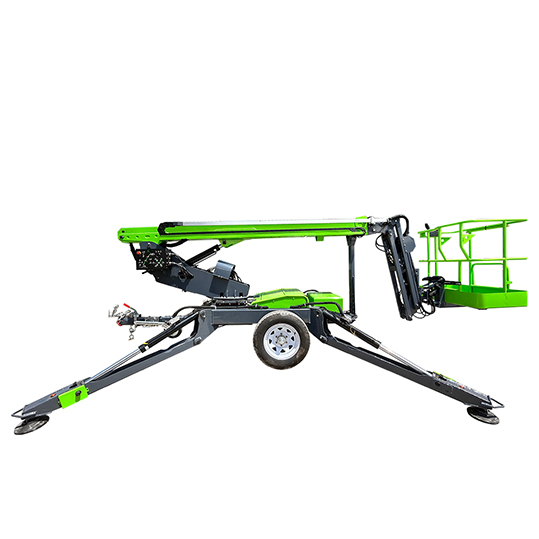

Towable boom lift provides the operator with reach and mobility from horizontal and vertical level, combining the flexibility of a small utility vehicle with the versatility of a self-propelled lift and platform.
200kg
Load Capacity8-15.85m
Max Platform Height10-17.85m
Max Working HeightThe boom lift is equipped with battery, zero pollution and noise.
More accurate and efficient operation with double folding boom.
The automatic leveling system ensures astable and safe work condition.
The accurate remote and micro control guarantees the precise positioning.
| Model | BSQ-8 | BSQ-10 | BSQ-12 | BSQ-14 | BSQ-16 | |||
| Dimension | ||||||||
| Max.Working Height | 10m | 12m | 14m | 15.8m | 17.85m | |||
| Max.Platform Height | 8m | 10m | 12m | 13.8m | 15.85m | |||
| Max.Working Radius | 5m | 5.5m | 5.9m | 6.6m | 7.1m | |||
| Overall Length(Stowed) | 4.7m | 5m | 5.3m | 5.2m | 5.7m | |||
| Overall Width | 1.5m | 1.5m | 1.5m | 1.6m | 1.6m | |||
| Overall Height(Stowed) | 1.9m | 1.9m | 1.9m | 2.15m | 2.15m | |||
| Overall Length(Storage) | 4.3m | 4.6m | 4.9m | 4.7m | 5.2m | |||
| Platform Size(L×W) | 1.1×0.7m | 1.1×0.7m | 1.1×0.7m | 1.1×0.7m | 1.1×0.7m | |||
| Ground Clearance | 0.35m | 0.35m | 0.35m | 0.35m | 0.35m | |||
| Outrigger Footprint Length | 3.8m | 3.8m | 3.8m | 3.9m | 3.9m | |||
| Outrigger Footprint Width | 2.8m | 2.8m | 2.8m | 2.9m | 2.9m | |||
| Tire | 205/70R15C | 205/70R15C | 205/70R15C | 205/70R15C | 205/70R15C | |||
| Performance | ||||||||
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg | |||
| Turntable Rotation | 355° | 355° | 355° | 355° | 355° | |||
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° | |||
| Platform Occupancy | 2 | 2 | 2 | 2 | 2 | |||
| Vertical jib Rotation(up/down) | -90° - 0° | -90° - 0° | -90° - 0° | -90° - 0° | -90° - 0° | |||
| Drive Speed(Stowed) | 70km/h | 70km/h | 70km/h | 70km/h | 70km/h | |||
| Gradeability(Stowed) | 45% | 45% | 45% | 45% | 45% | |||
| Max. Working Slope | 9° | 9° | 9° | 9° | 9° | |||
| Power | ||||||||
| Battery | 24V/220AH | 24V/220AH | 24V/250AH | 24V/220AH | 24V/220AH | |||
| Control Voltage | 24V | 24V | 24V | 24V | 24V | |||
| Pump Motor | 4KW | 4KW | 4KW | 4KW | 4KW | |||
| Weight | ||||||||
| Weight | 1490kg | 1550kg | 1640kg | 1900kg | 1980kg | |||
