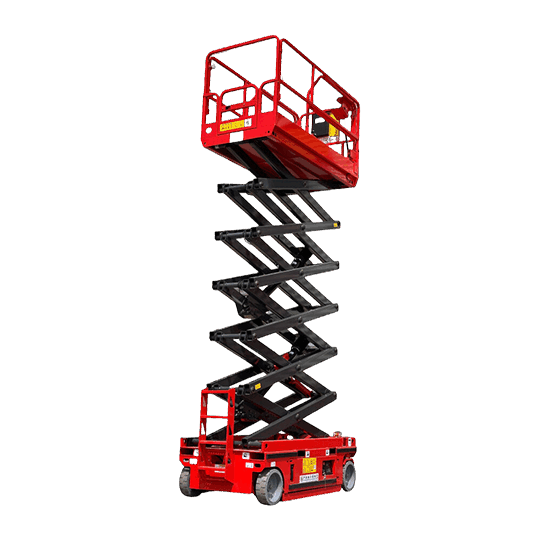

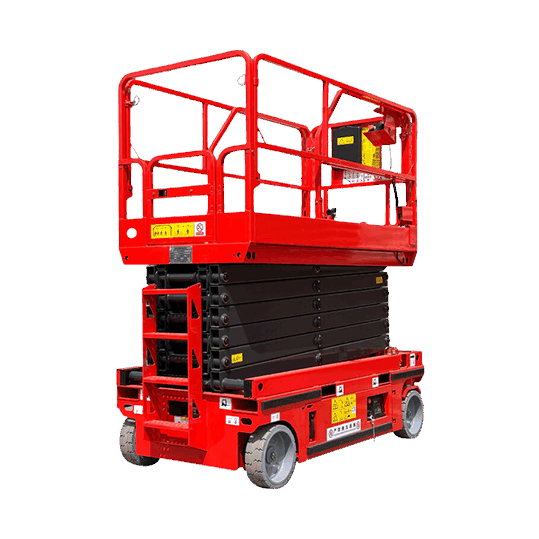

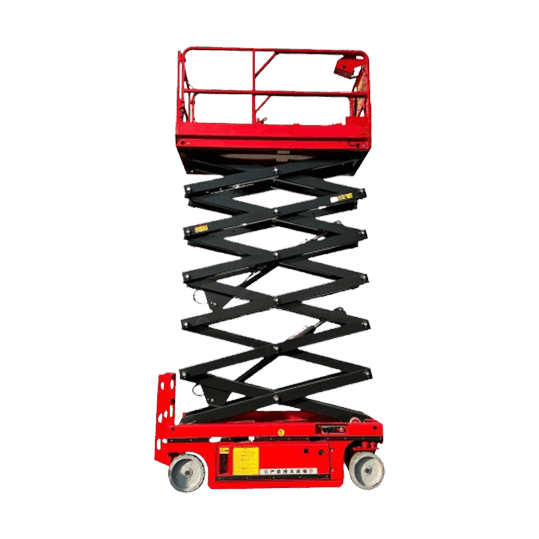

Self-propelled Scissor Lift

Self-propelled scissor lift is fully automatic without manual traction or external power supply. Flexible and convenient movement, drivable at full height and equipped with various safety protection devices, it is the ideal aerial work equipment for high efficiency and safe production.

230-450kg
Load Capacity
4-14m
Max Platform Height
6-16m
Max Working Height

Inquiry Now Send Email

Product Advantages

01
Small turning radius and flexible operation.
02
Automatic pothole protection system more safe and reliable.
03
Electric model lightweight design equipped with high-capacity battery pack long endurance.
04
Equipped with a unidirectional extension platform to expand the work scope and improve work efficiency.

Standard Features

Proportional Control
Self-Lock Gate On Platform
Extension Platform
Full Height Walking
Non-Marking Tire
4×2 Drive
Automatic Brake System
Emergency Descent System
Emergency Stop Button
Oil Pipe Explosion-Proof System
Fault Diagnosis System
Tilt Protection System
Buzzer
Horn
Hour Meter
Safety Maintenance Support
Standard Transport Forklift Hole
Charging Protection System
Strobe Lamp
Foldable Guardrail
Automatic Pit Protection

Products Parameter

Model	BSPT-4S	BSPT-6S	BSPT-6	BSPT-8S	BSPT-8	BSPT-10	BSPT-12	BSPT-14
Dimension
Max. Working Height	6m	8m	8m	10m	10m	12m	14m	16m
Max. Platform Height	4m	6m	6m	8m	8m	10m	12m	14m
Overall Length	1.46m	1.85m	2.43m	2.43m	2.43m	2.43m	2.43m	2.85m
Overall Width	0.76m	0.79m	1.21m	0.89m	1.21m	1.21m	1.21m	1.31m
Overall Height(Guardrails Up)	1.993m	2.24m	2.22m	2.35m	2.35m	2.47m	2.6m	2.62m
Overall Height(Guardrails Down)	1.61m	1.68m	1.67m	1.8m	1.8m	1.93m	2.06m	2.06m
Platform Size(L×W)	1.29×0.7m	1.68×0.74m	2.27×1.12m	2.27×0.86m	2.27×1.12m	2.27×1.12m	2.27×1.12m	2.7×1.11m
Platform Extension Size	0.6m	0.9m	0.9m	0.9m	0.9m	0.9m	0.9m	0.9m
Ground Clearance(Stowed/Raised)	50/50mm	100mm/19mm	100mm/19mm	100mm/19mm	100mm/19mm	100mm/19mm	100mm/15mm	100mm/15mm
Wheelbase	1.088m	1.39m	1.87m	1.87m	1.87m	1.87m	1.87m	2.28m
Turning Radius(Inside/Outside)	0.25m/1.4m	0.3m/1.75m	0m/2.4m	0m/2.4m	0m/2.4m	0m/2.4m	0m/2.4m	0m/2.4m
Tyre‌s	Φ230×80mm	Φ305×114mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm	Φ381×127mm
Performance‌
Load Capacity	230kg	230kg	450kg	320kg	450kg	320kg	320kg	230kg
Platform Extension Load	110kg	110kg	113kg	113kg	113kg	113kg	113kg	110kg
Lifting Speed	85/80sec	100/80sec	100/80sec	100/80sec	100/80sec	100/80sec	100/80sec	100/80sec
Travel Speed(Stowed)	3.5km/h	3.8km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Travel Speed (Raised)‌	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Gradeability	20%	25%	25%	25%	25%	25%	25%	25%
Max. Working Slope	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Power
Battery	2x12V/80AH	4×6V/200AH	4×6V/200AH	4×6V/200AH	4×6V/200AH	4×6V/200AH	4×6V/200AH	4×6V/240AH
Charger	24V/15A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Lifting/Driving Motor	24V/0.45KW	24V/3.3KW	24V/4.5KW	24V/4.5KW	24V/4.5KW	24V/4.5KW	24V/4.5KW	24V/4.5KW
Weight
Weight‌	900kg	1430kg	2250kg	2260kg	2350kg	2550kg	2980kg	3670kg
