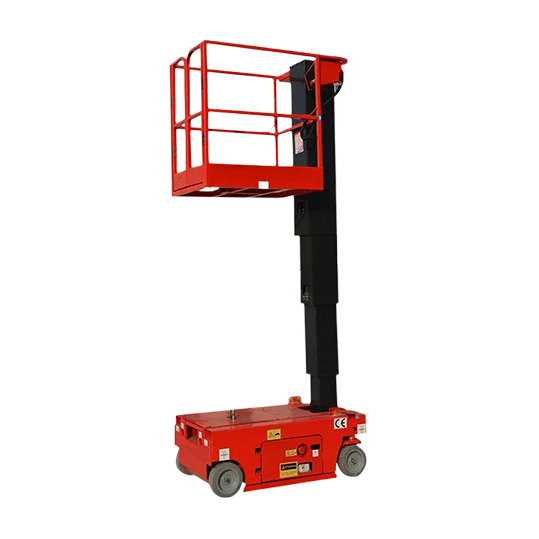

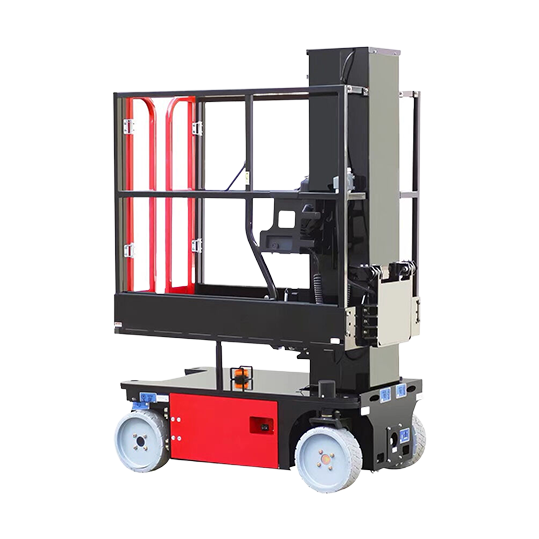

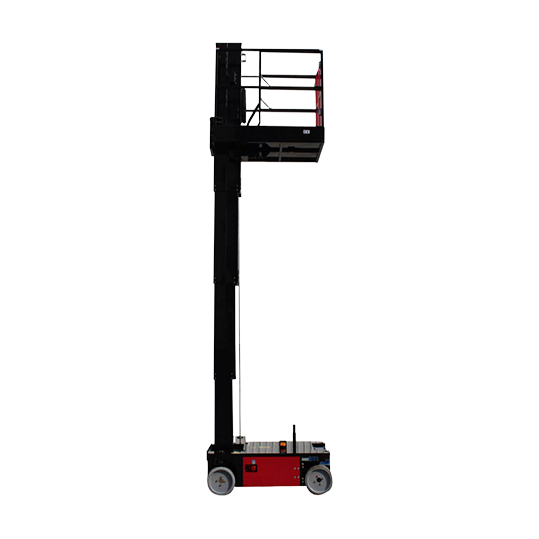

Self-propelled vertical mast lift is a lift that uses high-strength sleeves as the lifting structure to achieve vertical lifting. It has the advantages of small size, compact structure and stable lifting. It is widely used in high-altitude operation occasions such as factory warehouses, construction sites, and municipal maintenance.
159-227kg
Load Capacity4-6m
Max Platform Height6-8m
Max Working HeightSuitable for single-person operation.
Capable of moving at full height.
Compact structure and small size, suitable for operations in narrow spaces.
| Model | BSTT-4 | BSTT-6 |
| Dimension | ||
| Max. Working Height | 6m | 8m |
| Max. Platform Height | 4m | 6m |
| Overall Length | 1.35m | 1.35m |
| Overall Width | 0.8m | 0.8m |
| Overall Height | 1.98m | 1.98m |
| Platform Size (L×W) | 1.28×0.78m | 1.28×0.78m |
| Platform Extension Size | 0.51m | 0.51m |
| Ground Clearance(Stowed) | 80mm | 80mm |
| Ground Clearance(Raised) | 23mm | 23mm |
| Wheelbase | 1.04m | 1.04m |
| Turning Radius(Inside/Outside) | 0m/1.4m | 0m/1.4m |
| Tyres | Φ305×100mm | Φ305×100mm |
| Performance | ||
| Load Capacity | 227kg | 159kg |
| Platform Extension Load | 114kg | 114kg |
| Up/Down Speed | 52/53s | 52/53s |
| Travel Speed(Stowed) | 4km/h | 4km/h |
| Travel Speed (Raised) | 1.1km/h | 1.1km/h |
| Gradeability | 25% | 25% |
| Max. Working Slope | 1.5° | 1.5° |
| Power | ||
| Battery | 2×12V/105AH | 2×12V/105AH |
| Charger | 24V/15A | 24V/15A |
| Lifting Motor | 1.3KW | 1.3KW |
| Driving Motor | 0.5KW | 0.5KW |
| Weight | ||
| Weight | 880kg | 1070kg |
