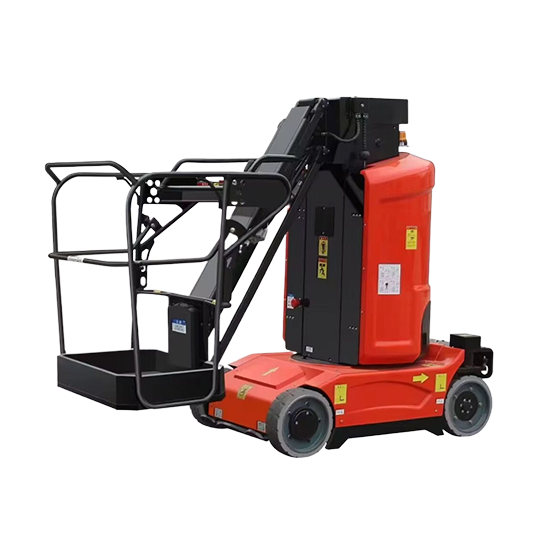

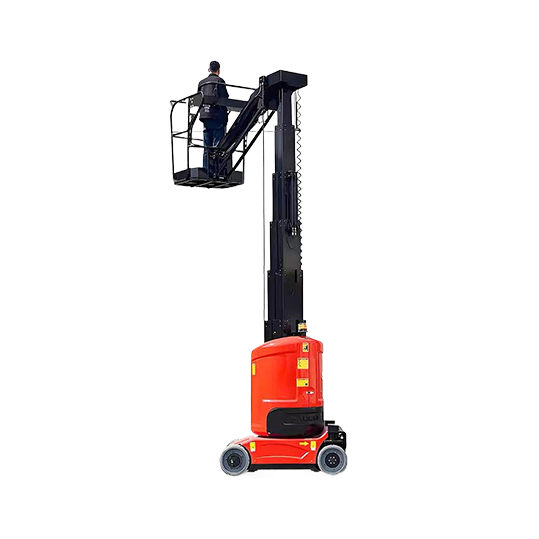

Self-propelled vertical mast lift with telescopic arm is a lift specially designed for operations in narrow spaces. With an ultra-narrow body design, it can flexibly move through narrow spaces, ensuring unimpeded operations in warehouses, factories, and both indoor and outdoor environments. It features a maximum horizontal extension of 3 meters, a 345° turntable rotation, and a 130° flexible adjustment of the small arm, which can accurately cover complex operation areas and realize dead-angle-free operations.
200kg
Load Capacity9.2m
Max Platform Height11.2m
Max Working HeightEfficient operation, capable of moving at full height.
With an ultra-narrow body design and a turning radius of only 1.88 meters, it boasts flexible passability.

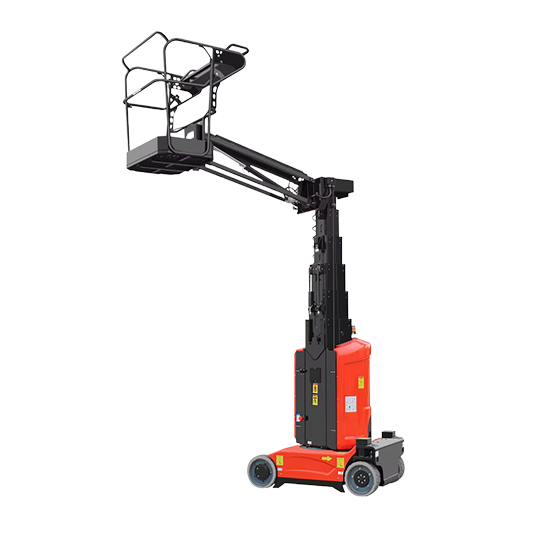

The jib can extend horizontally by 3 meters, with a 345° turntable rotation and 130° flexible adjustment of the small arm, accurately covering complex working areas and enabling dead-angle-free operations.
| Model | BSFB-9.2 |
| Size | |
| Max. Working Height | 11.2m |
| Max. Platform Height | 9.2m |
| Overall Length | 3.01m |
| Overall Width | 0.99m |
| Overall Height(stowed) | 2.02m |
| Platform Size(L×W) | 0.9×0.73m |
| Max.Horizontal Reach | 3m |
| Up and Over Height | 7.89m |
| Wheelbase | 1.22m |
| Ground Clearance(Stowed/Raised) | 70/19mm |
| Turning Radius(Inside/Outside) | 0.23/1.65m |
| Tyres | 381×127mm |
| Performance | |
| Load Capacity | 200kg |
| Turret Rotation | 345° |
| Jib Movement | 130° |
| Travel Speed(Stowed) | 4.5km/h |
| Travel Speed(Raised) | 0.5km/h |
| Up/Down Speed | 42/38s |
| Max. Working Slope | 2.5° |
| Power | |
| Battery | 24V/200AH |
| Charger | 24V/36A |
| Lifting Motor | 24V/3KW |
| Driving Motor | 24V/0.9KW |
| Weight | |
| Weight | 2800kg |
