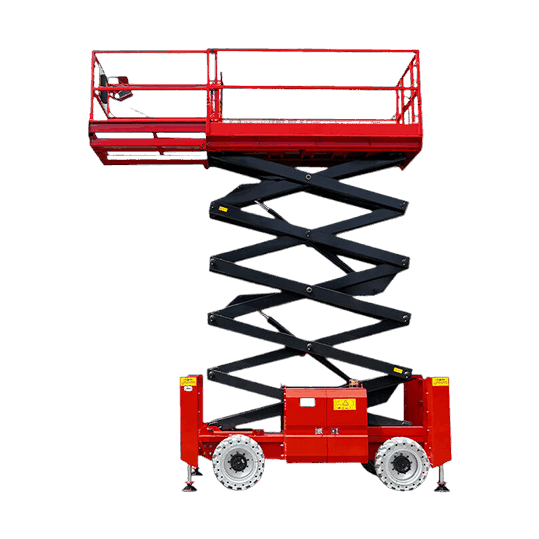

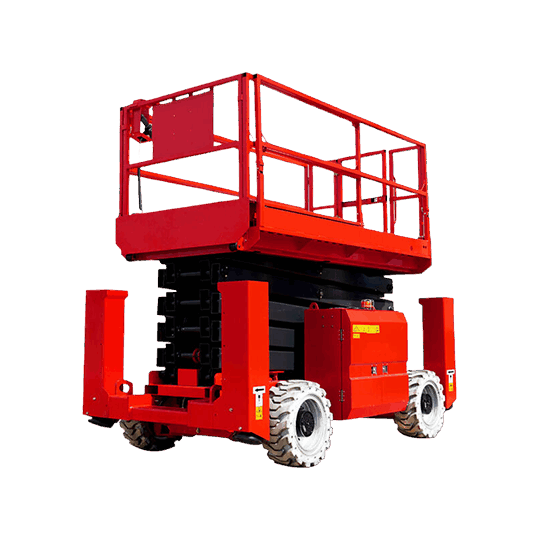

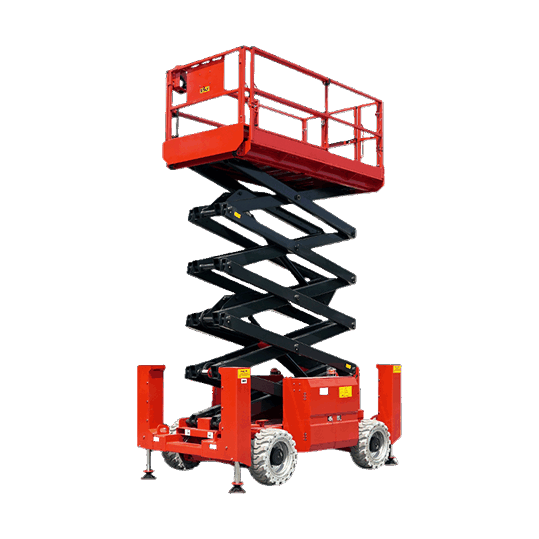

Rough Terrain Scissor Lift

Rough terrain scissor lift is powered by diesel, it is equipped with extended working platform to improve the productivity, and the hydraulic one-click automatic leveling outriggers are stable and suitable for all kinds of complicated and rough roads.

680-1150kg
Load Capacity
10-16.2m
Max Platform Height
12-18.2m
Max Working Height

Inquiry Now Send Email

Product Advantages

01
Automatic display of fault code for easy maintenance.
02
Automatic pothole protection system more safe and reliable.
03
Hydraulic drive powerful more efficient and safer.
04
Unidirectional extension platform can quickly reach the operation point.

Standard Features

Horn
Timer
Strobe Light
Emergency Descent
4×4 Drive
Driving Confirmation
Folding Fence
Buzzer
Tilt Alarm
Platform Self-locking Door
Floating Bridge Chassis
Lanyard Connection Point
Extension Platform–Unidirectional/Bidirectional
Manual Brake Release
Automatic Brake System
Emergency Stop Button
Non-Marking Tire–12m/14m
Battery Charge(Fast/Slow)–16m
Weight Drop System
Oil Pipe Explosion-proof System
Fault Diagnosis System
Full Proportional Handle Control
Hydraulic Oil Cooling System–16m
Fixing And Lifting Points
Automatic Hydraulic Leveling Leg
Load Sensing System

Products Parameter

Model	BSRT-10	BSRT-131	BSRT-162
Dimension
Max. Working Height	12m	15.1m	18.2m
Max. Platform Height	10m	13.1m	16.2m
Overall Length	4.88m	4.88m	4.88m
Overall Width	2.3m	2.3m	2.3m
Overall Height(Guardrails Up )	2.75m	2.95m	3.15m
Overall Height(Guardrails Down )	2.05m	2.25m	2.5m
Platform Size(L×W	3.98×1.83m	3.98×1.83m	3.98×1.83m
Platform Extension Size	Front 1.5m/Back 1.2m	Front 1.5m/Back 1.2m	Front 1.5m/Back 1.2m
Wheelbase	2.85m	2.85m	2.85m
Turning Radius(Inside/Outside)	2.16/5.33m	2.16/5.33m	2.16/5.33m
Ground Clearance	0.36m	0.36m	0.36m
Tyre‌s	33x12-20	33x12-20	33x12-20
Performance
Load Capacity	1150kg	680kg	680kg
Platform Extension Load	230kg	230kg	230kg
Travel Speed(Stowed)	6.1km/h	6.1km/h	6.1km/h
Travel Speed (Raised)‌	1.1km/h	1.1km/h	1.1km/h
Up/Down Speed	50/35s	55/45s	60/50s
Gradeability	50%	50%	50%
Max. Working Slope	2°/3°	2°/3°	2°/3°
Power
Diesel Engine	36KW	36KW	36KW
Diesel Tank	110L	110L	110L
Hydraulic Tank	110L	110L	110L
Control Voltage	12V DC	12V DC	12V DC
Weight
Weight‌	6950kg	7230kg	8020kg
