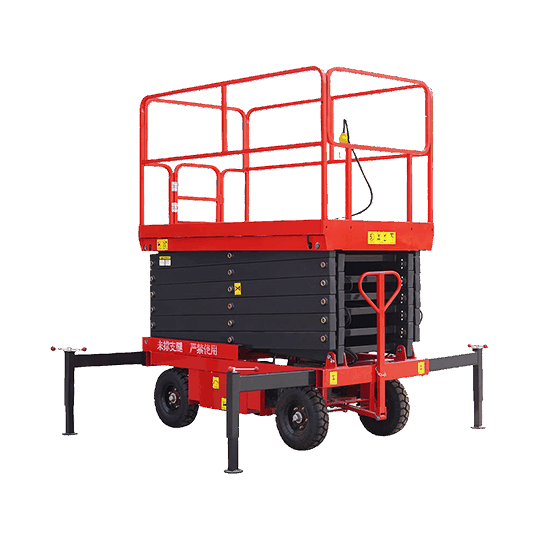

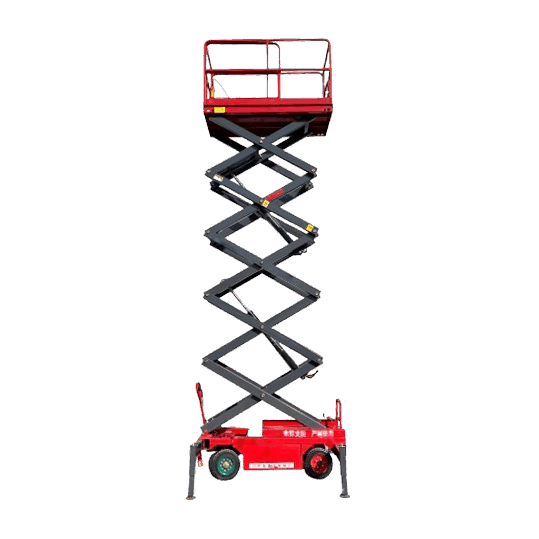

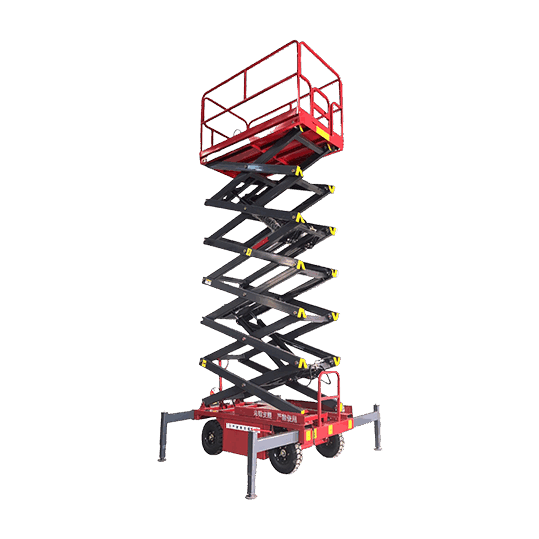

Mobile Scissor Lift

The mobile scissor lift is a type of lift that requires manual traction, and can also be equipped with auxiliary walking devices. It has the advantages of large load capacity and economical price, and is widely used in aerial work fields such as high-altitude maintenance, factory building construction, and construction site operations.

500-1000kg
Load Capacity
4-18m
Max Platform Height
6-20m
Max Working Height

Inquiry Now Send Email

Product Advantages

01
Large load capacity, which can meet the needs of high-altitude operations with heavy loads and in multiple occasions.
02
The price is lower and more economical.
03
Low failure rate and long service life.

Standard Features

Robot Welding Process
Retractable Outrigger
Traction Rod
Detachable Guardrail
Pneumatic Tire
Dual Upper And Lower Control Buttons
Emergency Stop Button
High-Strength Hydraulic Cylinder
Double-Layer Steel Mesh Oil Pipe
Anti-Wear And Anti-Freeze Hydraulic Oil
Wear-Resistant Seal
Emergency Descent Device
Adjustable Descent Speed
Built-In Explosion-Proof Valve
Overload Protection
Factory Load Test

Products Parameter

Model	BS500-4	BS500-6	BS500-8	BS500-10	BS500-12	BS500-14	BS500-16	BS500-18
Dimension
Max. Working Height	6m	8m	10m	12m	14m	16m	18m	20m
Max. Platform Height	4m	6m	8m	10m	12m	14m	16m	18m
Platform Size(L×W)	2.01×0.83m	2.01×0.83m	2.01×0.83m	2.01×1.13m	2.5×1.21m	2.845×1.42m	2.845×1.42m	3.06×1.62m
Overall Size(L×W×H)	2.016×1×1.12m	2.016×1×1.17m	2.016×1×1.26m	2.016×1.29×1.54m	2.5×1.36×1.78m	2.845×1.62×1.895m	2.845×1.62×2.055m	3.06×1.8×2.12m
Performance‌
Load Capacity	500kg	500kg	500kg	500kg	500kg	500kg	300kg	300kg
Lifting Speed	4-6m/min	4-6m/min	4-6m/min	4-6m/min	4-6m/min	4-6m/min	4-6m/min	4-6m/min
Power
Voltage	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC	380V/50HZ AC	380V/50HZ AC	380V/50HZ AC	380V/50HZ AC
Lifting Motor	1.5KW	1.5KW	1.5KW	2.2KW	3KW	3KW	3KW	3KW
‌Weight
Weight‌	670kg	720kg	820kg	1300kg	1950kg	2450kg	2700kg	3900kg
