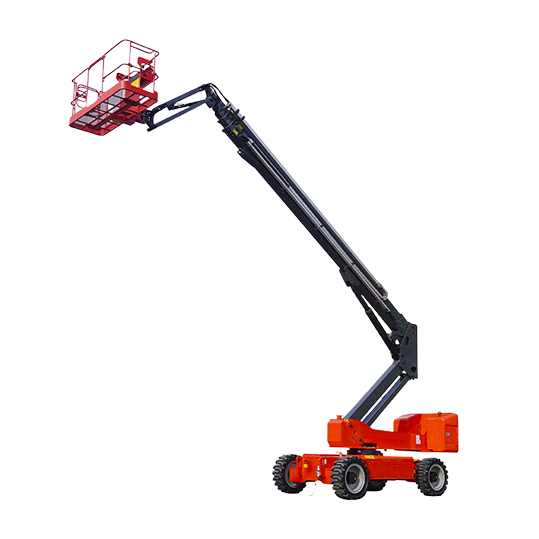

Electric telescopic boom lifts are powered by battery, with working heights ranging from 18 meters to 28.3 meters. They have the advantages of energy efficiency, high effectiveness, a wide working range, and a long service life.
300-450kg
Load Capacity16-26.3m
Max Platform Height18-28.3m
Max Working HeightEnergy saving, zero-emission and little maintenance cost.
Wide working range with a large load capacity of up to 460kg.
Strong four-wheel off-road ability to adapt to multiple terrains.
Complete safety protection device to guarantee workers’ safety.
| Model | BSZB-16 | BSZB-18 | BSZB-20 | BSZB-24Li | BSZB-26Li |
| Dimension | |||||
| Max.Working Height | 18m | 20.5m | 21.6m | 26.5m | 28.3m |
| Max.Platform Height | 16m | 18.5m | 19.6m | 24.5m | 26.3m |
| Max.Working Radius | 11.2m | 13.2m | 14.5m | 20m | 21.5m |
| Overall Length(Stowed) | 8.3m | 9.8m | 10.3m | 10.9m | 11.7m |
| Overall Width | 2.49m | 2.49m | 2.49m | 2.49m | 2.49m |
| Overall Height(Stowed) | 2.64m | 2.64m | 2.64m | 2.92m | 2.92m |
| Platform Size(L×W) | 1.8×0.76m | 1.8×0.76m | 1.8×0.76m | 2.3×0.9m | 2.3×0.9m |
| Wheelbase | 2.5m | 2.5m | 2.5m | 3.2m | 3.2m |
| Ground Clearance(Center) | 0.3m | 0.3m | 0.3m | 0.47m | 0.47m |
| Turning Radius(Outside) | 4.18m | 4.18m | 4.18m | 6.5m | 6.5m |
| Tyres | 33×12-20 | 33×12-20 | 33×12-20 | 385/65-24 | 385/65-24 |
| Performance | |||||
| Load Capacity | 300kg | 300kg | 300kg |
300kg(unrestricted) 450kg(restricted) |
300kg(unrestricted) 450kg(restricted) |
| Turntable Rotation | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° |
| Platform Occupancy | 3 | 3 | 3 | 3 | 3 |
| Vertical jib Rotation(up/down) | ±70° | ±70° | ±70° | ±70° | ±70° |
| Drive Speed(Stowed) | 5km/h | 5km/h | 5km/h | 5km/h | 5km/h |
| Gradeability(Stowed) | 45% | 45% | 45% | 45% | 45% |
| Max. Working Slope | 5° | 5° | 5° | 5° | 5° |
| Driving×Steering | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 |
| Power | |||||
| Battery | 48V/400AH | 48V/400AH | 48V/400AH | 80V/460AH | 80V/460AH |
| Control Voltage | 12V | 12V | 12V | 12V | 12V |
| Charger | 48V/60A | 48V/60A | 48V/60A | 80V/40A | 80V/40A |
| Pump Motor | 12KW | 12KW | 12KW | 21KW | 21KW |
| Drive Motor | 3.3KW | 3.3KW | 3.3KW | 5.2KW | 5.2KW |
| Hydraulic Tank | 105L | 105L | 105L | 120L | 120L |
| Emergency Power System | 12V | 12V | 12V | 12V | 12V |
| Weight | |||||
| Weight | 7800kg | 8520kg | 9100kg | 14800kg | 16100kg |
