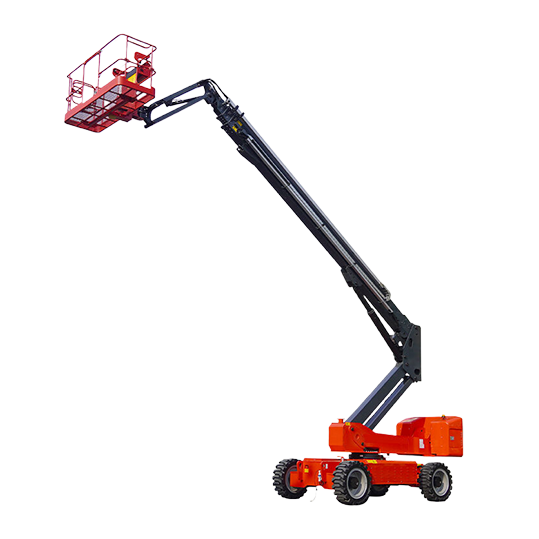

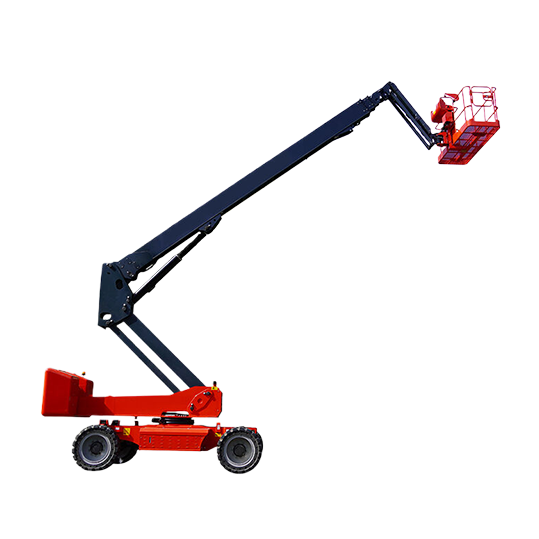

Diesel telescopic boom lifts are powered by diesel, with working heights ranging from 20 meters to 41 meters. They have the advantages of energy efficiency, high effectiveness, a wide working range and a long service life.
300-454kg
Load Capacity18-39m
Max Platform Height20-41m
Max Working HeightEnergy saving, efficient and little maintenance cost.
Wide working range with a large load capacity.
Strong four-wheel off-road ability to adapt to multiple terrains.
Complete safety protection device to guarantee workers’ safety.
| Model | BSZB-18D | BSZB-20D | BSZB-25D | BSZB-265D | BSZB-31D | BSZB-33D | BSZB-365D | BSZB-39D |
| Dimension | ||||||||
| Max. Working Height | 20m | 22m | 27m | 28.5m | 33m | 35m | 38.5m | 41m |
| Max. Platform Height | 18m | 20m | 25m | 26.5m | 31m | 33m | 36.5m | 39m |
| Overall Length(Stowed) | 9.5m | 10.6m | 11.168m | 12.05m | 14.1m | 15.3/13.1m | 16.2m | 16.6m |
| Overall Width | 2.5m | 2.5m | 2.5m | 2.5m | 2.49/3.95m | 2.5m | 3.55m | 3.55m |
| Overall Height(stowed) | 2.5m | 2.5m | 2.8m | 2.8m | 3.05m | 2.5m | 2.5m | 3.8m |
| Platform Size(L×W) | 2.44×0.9m | 2.44×0.9m | 2.44×0.9m | 2.44×0.9m | 2.44×0.9m | 2.44×0.9m | 2.44×0.9m | 2.44×0.9m |
| Max. Outreach | 12.8m | 14.05m | 19.4m | 21m | 22.4m | 22.4m | 18.4m | 18.4m |
| Max. Horizontal Work Amplitude | 13.4m | 14.65m | 20m | 21.6m | 23m | 23m | 19m | 19m |
| Ground Clearance | 0.3m | 0.3m | 0.44m | 0.44m | 0.33m | 0.33m | 0.52m | 0.52m |
| Wheelbase | 2.8m | 2.8m | 3.0m | 3.0m | 4.846/4.633m | 2.8m | 3.8m | 3.8m |
| Tyres | 355/55D625 | 355/55D625 | 355/14-20 | 355/55D625 | 385/65-24 | 445/65-24 | 445/65 - 24 | 445/65 - 24 |
| Performance | ||||||||
| Load Capacity | 300kg | 300kg | 300kg | 300/454kg | 340/454kg | 340/454kg | 340kg | 340kg |
| Platform Occupancy | 2pers | 2pers | 3pers/2pers | 3pers/2pers | 3pers/2pers | 3pers/2pers | 2pers | 2pers |
| Drive Speed(Stowed) | 4.8km/h | 4.8km/h | 5.1km/h | 5.1km/h | 4.2km/h | 4.2km/h | 4.2km/h | 4.2km/h |
| Drive Speed(Raised) | 1.0km/h | 1.0km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 0.55km/h | 0.55km/h |
| Gradeability(4WD) | 45% | 45% | 45% | 45% | 40% | 40% | 40% | 40% |
| Turntable Rotation | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | 180° | 180° | 180° | 180° | 180° | 180° | 180° | 180° |
| Max. Tilt Angle(front to back/side to side) | 5°/3° | 5°/3° | 5°/3° | 5°/3° | 5° | 5° | 5°/3° | 5°/3° |
| Turning Radius (Inside/Outside) | 2.9/6.15m | 2.9/6.12m | 3.6/8.8m | 3.6/8.8m | 2.3/5.88m | 2.3/5.88m | 7.47m/10.8m | 7.47m/10.8m |
| Turntable Tailswing | 1.2m | 1.6m | 1.5m | 1.8m | 1.4m | 1.4m | 1.6m/2.26m | 1.6m/2.26m |
| Max. Lateral Force (Restricted/Unrestricted) | 400N | 400N | 400N | 400N | 400N | 400N | 400N | 400N |
| Max. Wind Speed | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s | 12.5m/s |
| Driving×Steering | 4×2 | 4×2 | 4×2 | 4×2 | 4×4 | 4×4 | 4×4/4×2 | 4×4/4×2 |
| Power | ||||||||
| Power | 55.4KW | 55.4KW | 55.4KW | 55.4KW | 55.4KW | 55.4KW | 55.4KW | 55.4KW |
| Hydraulic Tank | 150L | 150L | 180L | 180L | 240L | 240L | 300L | 300L |
| Diesel Fuel Tank | 100L | 100L | 130L | 130L | 240L | 240L | 230L | 230L |
| Weight | ||||||||
| Weight | 9375kg | 10280kg | 16100kg | 17110kg | 20500kg | 22100kg | 24000kg | 25500kg |
