Aluminum Alloy Mast Lift

Aluminum Alloy Mast Lift is made of high-strength aluminum alloy materials. It has the advantages of small volume, light weight, compact structure and easy mobility. It is widely used in high-altitude operation occasions such as shopping malls, hotels and venues, and are used for high-altitude cleaning, lamp replacement, advertising installation and other work.

117-237kg
Load Capacity
4-14m
Max Platform Height
6-16m
Max Working Height

Inquiry Now Send Email

Product Advantages

01
It has an attractive appearance and a compact structure.
02
It is small in size, light in weight and easy to move.
03
It can fit into elevators, making it convenient for indoor high-altitude operations.

Standard Features

Robot Welding
Spray Coating Process
High-Strength Aluminum Alloy
Telescopic Outriggers
Movable Universal Wheels
Remote Control
Copper Core Motor
Plate Chain
High-Strength Hydraulic Cylinder
Double-Layer Steel Mesh High-Pressure Oil Pipe
Anti-Wear And Anti-Freeze Hydraulic Oil
Wear-Resistant Seals
Emergency Stop Button
Emergency Descent Device
Adjustable Descending Speed
Factory Load Test

Products Parameter

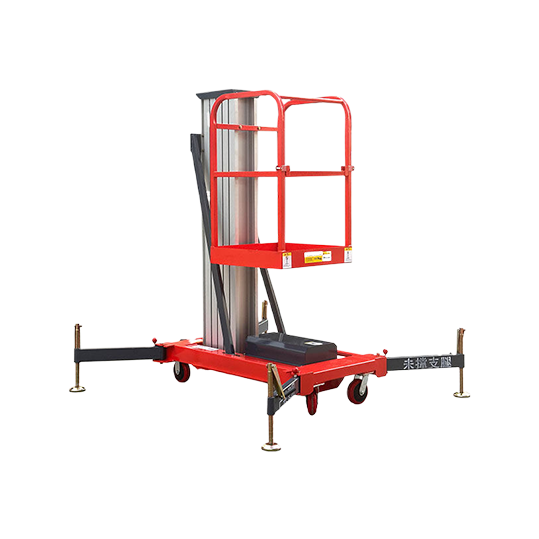

Single-mast Aluminum Alloy Lift

Model	BS117-4	BS117-6	BS117-8	BS117-10
Dimension
Max. Working Height	6m	8m	10m	12m
Max. Platform Height	4m	6m	8m	10m
Platform Size(L×W)	0.6×0.6m	0.6×0.6m	0.6×0.6m	0.6×0.6m
Overall Size(L×W×H)	1.28×0.8×1.75m	1.28×0.8×1.9m	1.28×0.8×1.98m	1.28×0.9×2.1m
Performance‌
Load Capacity	117kg	117kg	117kg	117kg
Lifting Speed	4-6m/min	4-6m/min	4-6m/min	4-6m/min
Power
Voltage	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC
Lifting Motor	0.75KW	0.75KW	0.75KW	1.1KW
‌Weight
Weight‌	250kg	280kg	300kg	340kg

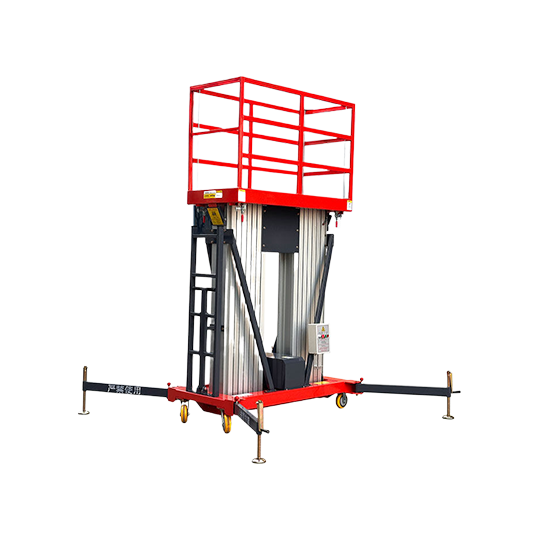

Double-mast Aluminum Alloy Lift

Model	BS237-4	BS237-6	BS237-8	BS237-10	BS237-12	BS237-14
Dimension
Max. Working Height	6m	8m	10m	12m	14m	16m
Max. Platform Height	4m	6m	8m	10m	12m	14m
Platform Size(L×W)	1.1×0.6m	1.1×0.6m	1.15×0.6m	1.35×0.6m	1.45×0.6m	1.45×0.6m
Overall Size(L×W×H)	1.3×0.9×1.75m	1.3×0.9×1.9m	1.36×0.9×2m	1.56×0.97×1.9m	1.66×0.97×2m	1.66×1.1×2.35m
Performance‌
Load Capacity	237kg	237kg	237kg	237kg	237kg	237kg
Lifting Speed	4-6m/min	4-6m/min	4-6m/min	4-6m/min	4-6m/min	4-6m/min
Power
Voltage	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC	220V/50HZ AC
Lifting Motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
‌Weight
Weight‌	380kg	420kg	550kg	600kg	700kg	800kg
